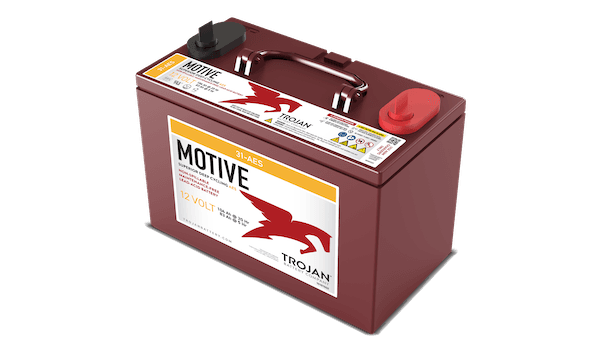

31-AES 12V Battery BCI Group 31
31-AES 12V AGM Battery
The 31-AES 12V AGM battery provides high energy output for better performance in floor machines, RVs, and more. Its design enables horizontal or vertical installation. Trojan AES AGM batteries deliver up to 3x the cycle life of standard AGM, for high sustained performance and high capacity in extreme deep cycling (up to 100% DoD). They are ideal for challenging environments and partial charging conditions. This battery is also available in BCI Group 29. See table and datasheets for both group sizes below.
@25 Amps / 180
5-Hr Rate / 83 Ah 20-Hr Rate / 104 Ah
1.38
Length / 12.80 (325) Width / 6.81 (173) Height / 9.43 (240)
69 (31)
-40°F to 140°F (-40°C to 60°C)
Features & Benefits
Lasts Longer: Up to 3x longer cycle life than standard AGM batteries. Validated at 1,200 cycles at 100% DoD vs. 400 cycles for AGM.
Performs in harsh conditions: Robust performance in extreme temperatures and conditions. Temperature range from -40°F to 140°F (-40°C to 60°C).
Delivers harmless PSoC: Tested to withstand PSoC, or partial state of charge, again and again.
- Maintenance Free: Virtually no maintenance as watering is not required.
- Safe and Sustainable: Trojan AES AGM is classified as non-spillable and can be safely mounted horizontally to fit your space. It’s made using 80% recycled materials and is 99% recyclable.
- Rugged Design: Designed and manufactured to absorb vibration and shock.
- Warranty: This VRLA absorbent glass mat battery is backed by a 3-year warranty.
- AGM Charger: Charge with existing AGM charger and profiles.
31-AES 12V AGM Battery in BCI Groups 31 and 29
| 31-AES 12V AGM Battery BCI Group Size | Capacity Minutes @25 amps | Capacity Amp-hours (Ah) 5-Hr Rate | Capacity Amp-hours (Ah) 20-Hr Rate | Energy 100-Hr Rate | Terminal Type | Length inches (mm) | Width inches (mm) | Height inches (mm) | Weight lbs (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 31 | 177 | 82 | 100 | 1.33 | 6, 15 | 12.80 (325) | 6.81 (173) | 9.37 (238) | 69 (31) |
| 29 | 180 | 110 | 130 | -- | 6 | 13.42 (341) | 6.84 (174) | 9.15 (233) | 69 (31) |
